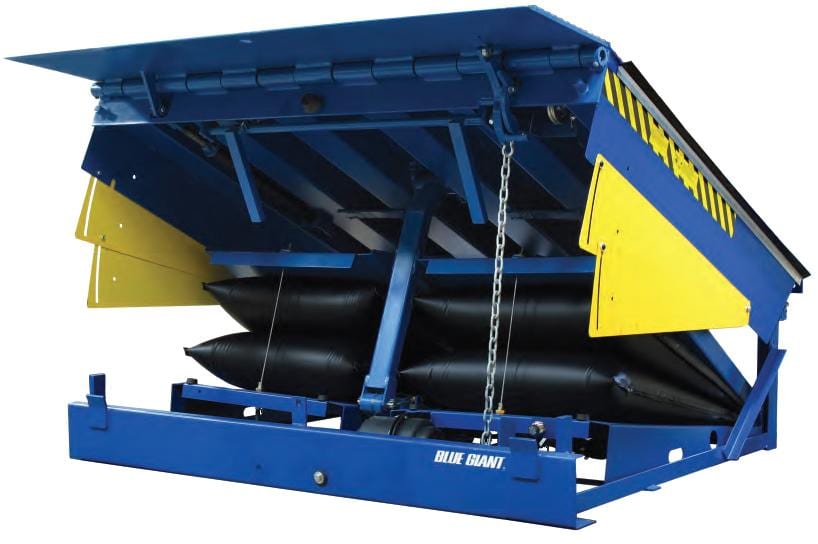

Blue Giant U-Series Air Bag Dock Leveler

Standard Features

• Blower Motor – Activates the leveler by delivering air on demand.
• Heavy Duty Air Bags – Damage-resistant and reliable performance in all temperature conditions.
• Aircraft Cables – Raise the deck by pulling on the roller arm.
• Roller Arm – Raises the deck once activated by the aircraft cables.
• Lip Deployment Mechanism – Enables smooth lip deployment.
• Fixed Rear Hinge – Lets the deck flex up to 4″ under load. May be upgraded to Assured Motion Float – a 4″ maintained deck tilt.

Easy to Operate

• The U-Series air bag loading dock leveler comes standard with a NEMA4X/IP65 rated single push button control for sequenced deck and lip operation. When activated, the air bags inflate, raising the deck. When the button is released, the bags deflate, allowing the deck to lower smoothly onto the trailer bed.

Structural Integrity

• A minimum of six heavy-duty U-beam channels are welded to the underside of the deck at dynamic impact points, preventing ‘dishing’ and extending the life of the dock leveler. For more demanding applications, the standard fixed rear hinge design can be advanced to assured motion float, a 4″ maintained deck tilt that allows the dock leveler to withstand heavier usage without experiencing deck fatigue.

The Power of Air

• The high-volume, low-pressure air lifting system is a environmentally friendly alternative to oil-powered hydraulics. The air bags can operate in extreme temperature conditions and withstand pressure without over-inflating. Their PVC-coated polyester fibres make the bags resistant to chemical or puncture damage.

Designed with Safety in Mind

• The airbag dock leveler operates safely and efficiently under the toughest conditions; temperature extremes, heavy usage, and exposure to caustic substances. The deck flexes under load to allow a smooth cross-docking transition, minimizing the risk of worker injury and cargo or equipment damage. The fall-safe system provides additional protection by limiting platform free-fall.
