When you need a little extra strength for moving heavy objects, a scissor lift table might be the product to consider. A scissor lift table is a work platform that uses folding components to raise and lower materials, personnel, and products for loading/unloading and work positioning. Scissors lifts are a time-proven method to move heavy objects from one height to another and have proven to increase productivity while reducing worker injuries.
Different Types of Lift Tables
There is a lift table for almost every application. If a scissor lift table is not readily available for your application, chances are one can be fabricated to fit your needs. The list of tables below give an example of the many different options available.
Production (P) Series Lift
- The P Series is the most popular model in the Advance Lifts Lineup
- Capacities range from 2500 lbs to 6000 lbs on the standard table
- Platform sizes range from 24″ x 36″ to 72″ x 120″
- Lowered Heights as low as 6.5″
- Raised Heights as high as 70″
- Travel varies from 24″ to 60″
Double Wide, Double Long, and Double High Tables
Double Wide Specifications
- Capacities from 4,000 lbs to 12, 000lbs
- Platforms from 48″ x 36″ to 120″ x 120″
Lowered Heights from 8.5″ – 12″- Raised Heights from 30.5″ – 70″
- Travel Distances from 22″ – 58″
Double Long Specifications
- Capacities from 4,000 lbs to 12,000 lbs
- Platforms from 24″ x 74″ — 72″ x 336″ (28 feet long!)
- Lowered Heights from 6.5″ – 11″
- Raised Heights from 30.5″ – 71″
- Travel Distances from 24″ – 60″

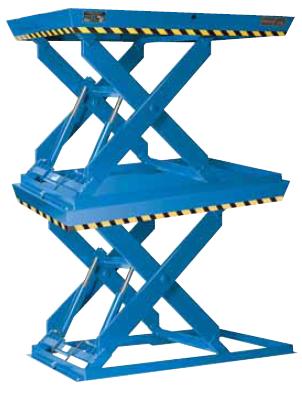

Double High Specifications
- Capacities from 900 lbs to 10,500 lbs
- Platforms from 24″ x 36″ — 54″ x 84″
- Lowered Heights from 13″ – 24″
- Raised Heights from 61″ – 144″
- Travel Distances from 48″ – 120″

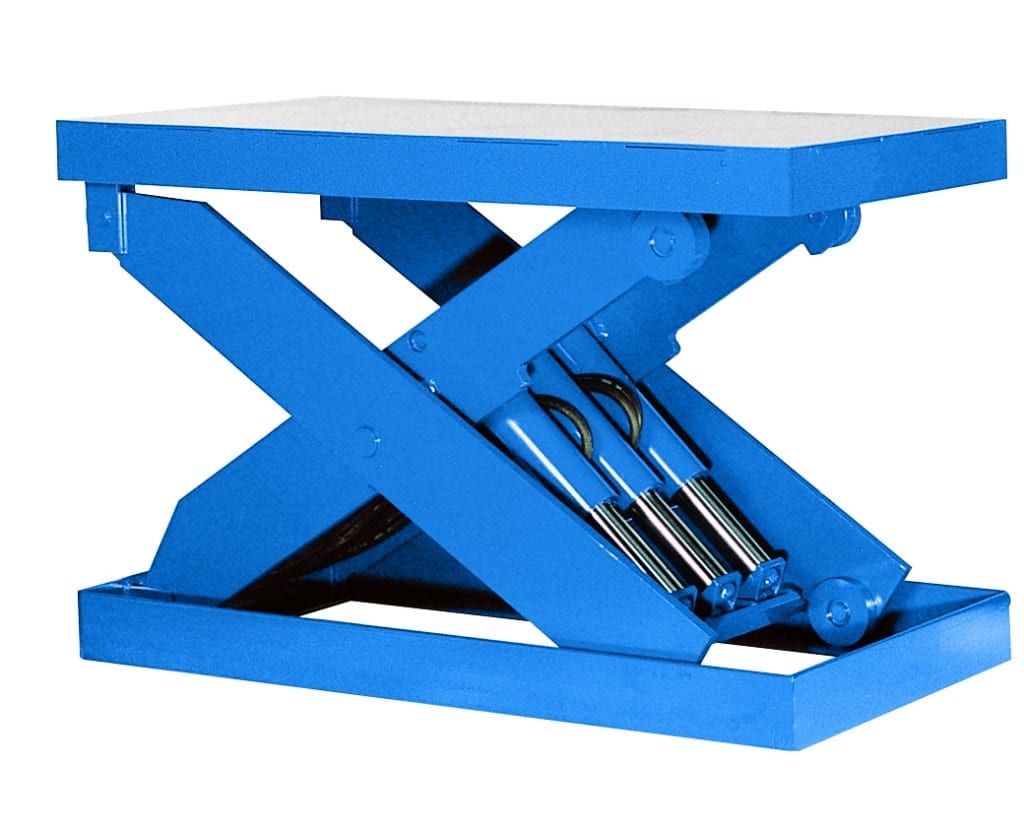

Heavy Duty (HD) Series Lifts
The HD-Series Lifts were designed for the higher capacity applications beyond the scope of the P-Series units.
Capacities from 8000 lbs to 12,000 lbs- Double Wide from 12,800 lbs to 19,200 lbs
- Double Long from 16,000 lbs to 24,000 lbs
- Platforms from 30″ x 48″ to 78″ x 114″
- Double Wide from 84″ x 78″ to 132″ x 114″
- Double Long from 30″ x 98″ to 78″ x 194″
- Lowered Heights from 9.75″ – 12″
- Double Wide from 11.75″ – 14″
- Double Long from 9.75″ – 12″
- Raised Heights from 33.75″ to 72″
- Travel Distances from 22″ to 60″
Super Duty (SD) and JUMBO (JSL) Series Lifts
The SD-Series lifts were designed as a step up from the HD series. Many of these models are modified dock lifts so you will notice that the edge of loading capabilities are often a higher percentage of the lifting capacity than is typical for smaller lifts. The JSL series units are a sampling of some of the very large special lifts that Advance Lifts produce. If you have a very large lift requirement that does match up with one of our Jumbo units, please call us and we will be pleased to quote on your exact requirements.
Super Duty (SD) Specifications
- Capacities from 5,000 lbs to 20,000 lbs
- Double Long from 10,000 lbs – 30,000 lbs
- Platforms from 6′ x 8′ – 8′ x 12′
- Double Long up to 8′ x 24′
- Lowered Heights from 10″
- Raised Heights up to 78″
- Travel Distances equals 58″ on all Models
Jumbo Series (JSL) Specifications
- Capacities from 6,000 lbs to 60,000 lbs
- Platforms from 9′ x 12′ to 8’6″ x 50′ long
- Lowered Heights from 15″
- Raised Heights up to 132″
- Travel Distances from 58″ to 99″
Brochure Download – Advance Lifts Scissor Lift Tables
Beaton Industrial sells, services, and installs Scissor Lift Tables throughout New York State and nationwide. If your company is located in and around the cities of Utica, Syracuse, Binghamton, Ithaca, Watertown, Albany, Poughkeepsie, or Plattsburgh, New York; Contact Beaton Industrial today to arrange a meeting with one of our Lift Table representatives.
